DLC-2 CONSTRUCTION [DYNAMIC STABILITY CONTROL (DSC)]

id0402b2180800

•  A connector (DLC-2) conforming to International Organization for Standardization (ISO) standards has been added.

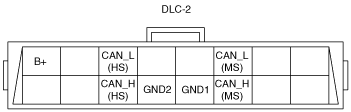

•  Shape and terminal arrangement as stipulated by the ISO 15031-3 (SAE J1962) international standard has been adopted for this connector.The 16-pin connector consists of a CAN_H (HS) terminal, CAN_L (HS) terminal, CAN_H (MS) terminal, CAN_L (MS) terminal, GND1 terminal, GND2 terminal, and B+ terminal.
am2zzn00000646

Terminal

Function
CAN_L (HS)
Serial communication Lo terminal (HS)
CAN_H (HS)
Serial communication Hi terminal (HS)
CAN_L (MS)
Serial communication Lo terminal (MS)
CAN_H (MS)
Serial communication Hi terminal (MS)
GND1
Body ground terminal
GND2
Serial communication ground terminal
B+
Battery power supply terminal
