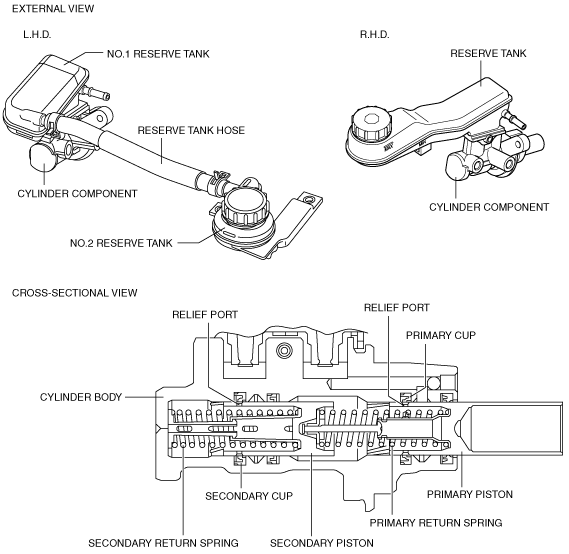

•  A mini-master cylinder has been adopted which has an overall shorter cylinder length for an assured fit in the engine compartment space.

•  The mini-master cylinder, a plunger type (cup does not slide) with an inner cylinder diameter of 20.6 mm {0.811 in}, provides improved durability.

Note

•  Plunger type: The cup is fixed to the cylinder with the piston sliding along the internal surface of the cup.

•  The master cylinder cannot be disassembled. Therefore, if there is any malfunction in the interior of the master cylinder, replace the master cylinder component without disassembling.
