FRONT BRAKE (DISC) REMOVAL/INSTALLATION
id041100191300
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. (See AIR BLEEDING.)
4. After installation, pump the brake pedal a few times and verify that the brakes do not drag.

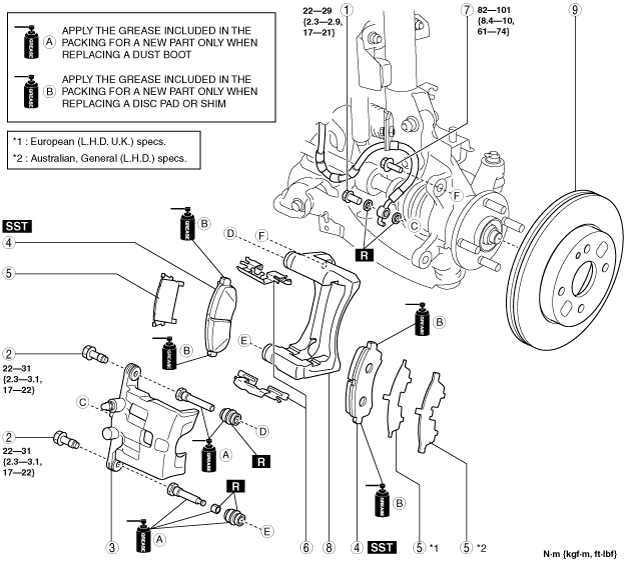

am2zzw00001069
|
|
1
|
Bolt
|
|
2
|
Bolt
|
|
3
|
Caliper
|
|
4
|
Disc pad
(See Disc Pad Installation Note.)
|
|
5
|
Shim
|
|
6
|
Guide plate
|
|
7
|
Bolt
|
|
8
|
Mounting support
|
|
9
|
Disc plate
|
Guide Plate Installation Note (European (L.H.D. U.K.) specs.)
1. If installing a new guide plate, peel off the protective seal before installing it to the mounting support.
am2zzw00002570
|
Disc Pad Installation Note
1. Thoroughly clean the exposed area of the piston.
2. Set up the disc pads and SST.
adejjw00000911
|
3. Press fit the piston using the SST.
4. Use the grease included with the packaging only when replacing a disc pad or shim, and apply it to the areas in which the guide plate of the disc pad comes into contact.
5. Install the disc pads to the mounting support.
