VACUUM HOSE REMOVAL/INSTALLATION [ZJ, ZY]
id0411008016h1
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

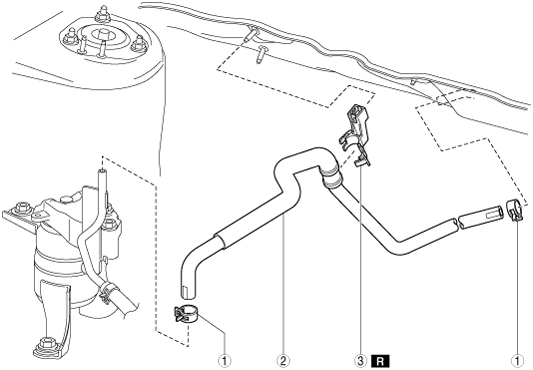

L.H.D.
am2zzw00001418
|
|
1
|
Hose clamp
|
|
2
|
Vacuum hose
|
|
3
|
Vacuum hose clip
|

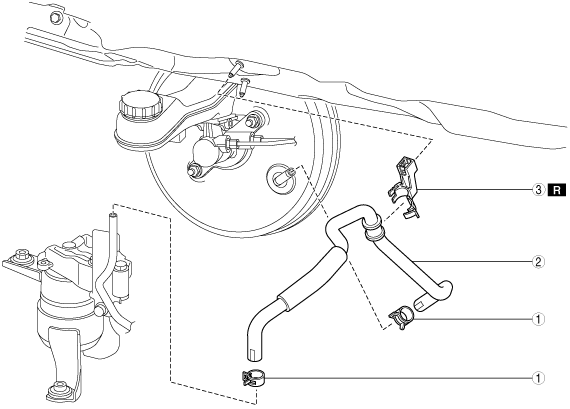

R.H.D.
am2zzw00001300
|
|
1
|
Hose clamp
|
|
2
|
Vacuum hose
|
|
3
|
Vacuum hose clip
|
Vacuum Hose Installation Note
A type
1. Install the vacuum hose to the vacuum hose clip as shown in the figure.
am2zzw00003131
|
2. Verify that the latch of the vacuum hose clip is tightened by 5—6 threads.
B type
1. Install the vacuum hose to the vacuum hose clip as shown in the figure.
am2zzw00003132
|
