VACUUM PUMP REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)]

id0411008036a1

1.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

2.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

3.  Remove the air hose and ventilation hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZ-CD 1.6 (Y6)].)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

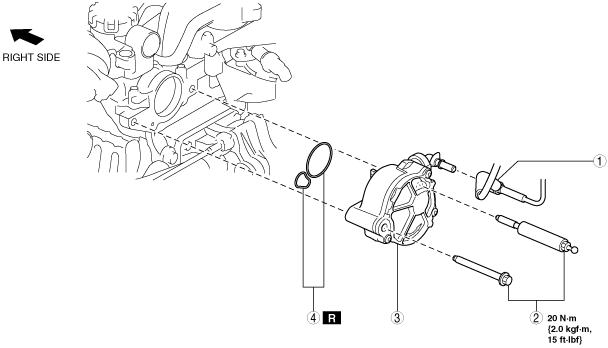

am2zzw00003874

1	Vacuum hose (See Vacuum Hose Removal Note.)
2	Bolt
3	Vacuum pump
4	O-ring

Vacuum Hose Removal Note

1.  Disconnect the vacuum hose connector from the vacuum pump while pressing the tabs of the vacuum hose connector.

am2zzw00003875
