PARKING BRAKE LEVER REMOVAL/INSTALLATION [L.H.D.]

id0412001966c5

1.  Remove the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  After installation, inspect the parking brake stroke and adjust if necessary. (See PARKING BRAKE LEVER INSPECTION.)

am2zzw00003873

1	Parking brake switch connector
2	Adjusting nut
3	Bolt (See Bolt Removal Note.)
4	Bolt
5	Clip (See Clip Removal Note.) (See Clip Installation Note.)
6	Parking brake lever
7	Parking brake switch

Bolt Removal Note

1.  Move the front seat (LH) forward.

2.  Perform the work from the rear seat, flip over the floor covering.

am2zzw00004039

3.  Remove the bolt.

Clip Removal Note

1.  Remove the clip.

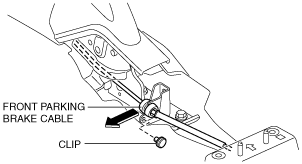

am2zzw00004040

2.  Remove the front parking brake cable from the parking brake lever.

Clip Installation Note

1.  Install the front parking brake cable to the parking brake lever.

am2zzw00004041

2.  Install the clip.
