END CABLE REMOVAL/INSTALLATION

id041200802000

1.  Remove the brake shoe. (See REAR BRAKE (DRUM) REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  After installation, inspect the parking brake stroke and adjust if necessary. (See PARKING BRAKE LEVER INSPECTION.)

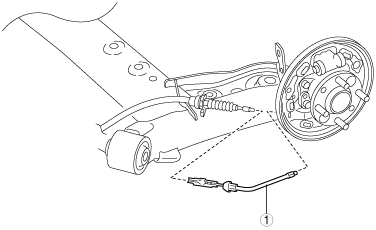

adejjw00001548

1	End cable (See REAR PARKING BRAKE CABLE REMOVAL/INSTALLATION.)
