TRANSAXLE OIL INSPECTION [F35M-R]

id0515a1800000

Caution
•  There are two types of transaxle oil for this type of transaxle corresponding to the vehicle identification number. If the engine oil is replaced or supplemented, add oil which corresponds to the vehicle identification number and do not use oil of a different type. If a different type of oil is added, it could result in a transaxle malfunction.

1.  Park the vehicle on level ground.

2.  Stop the engine and allow approx. 3 min before continuing.

3.  Remove the hole cover.

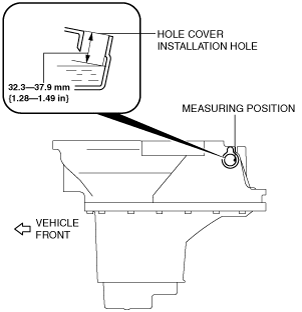

4.  Verify that the oil level is as shown in the figure.

am2zzw00000180

•  If the oil level is lower than the low level, add the specified amount and type of oil through the hole cover installation hole.

Item

Type A*1

Type B*2
Manual transaxle oil grade
API service GL-4 or GL-5
API service GL-4
Manual transaxle oil viscosity
All-season: SAE 75W-90
Above 10 °C {50 °F}: SAE 80W-90
SAE 75W-80

*1: Applied VIN (assumed)

*2: Applied VIN (assumed)
JMZ DE1352*# 100001—JMZ DE1352*# 121497
JMZ DE1352*# 121498—
JMZ DE13J2*# 100001—JMZ DE13J2*# 121490
JMZ DE13J2*# 121491—
JMZ DE13K2*# 100001—JMZ DE13K2*# 121459
JMZ DE13K2*# 121460—
JMZ DE1452*# 100001—JMZ DE1452*# 228626
JMZ DE1452*# 228627—
JMZ DE14J2*# 100001—JMZ DE14J2*# 228543
JMZ DE14J2*# 228544—
JMZ DE14K2*# 100001—JMZ DE14K2*# 228631
JMZ DE14K2*# 228632—
JMZ DE13J20# 100001—JMZ DE13J20# 121489
JMZ DE13J20# 121490—
JMZ DE13K20# 100001—JMZ DE13K20# 121496
JMZ DE13K20# 121497—
JMZ DE14520# 100001—JMZ DE14520# 228628
JMZ DE14520# 228629—
JMZ DE14J20# 100001—JMZ DE14J20# 228634
JMZ DE14J20# 228635—
JMZ DE14K20# 100001—JMZ DE14K20# 228525
JMZ DE14K20# 228526—
JM0 DE10Y1*0 100001—JM0 DE10Y1*0 134545
JM0 DE10Y1*0 134546—
JM7 DE10J1*0 100001—JM7 DE10J1*0 135053
JM7 DE10J1*0 135054—
JM7 DE10Y1*0 100001—JM7 DE10Y1*0 134566
JM7 DE10Y1*0 134567—

5.  Install the hole cover.

am2zzw00000181

Tightening torque
8—11 N·m {80—112 kgf·cm, 70—97 in·lbf}
