POWERFLOW STRUCTURE


id051700102200

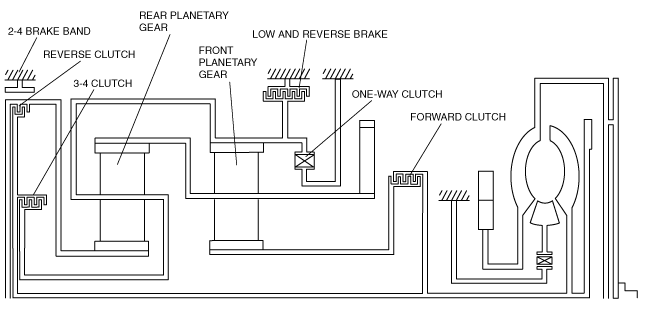

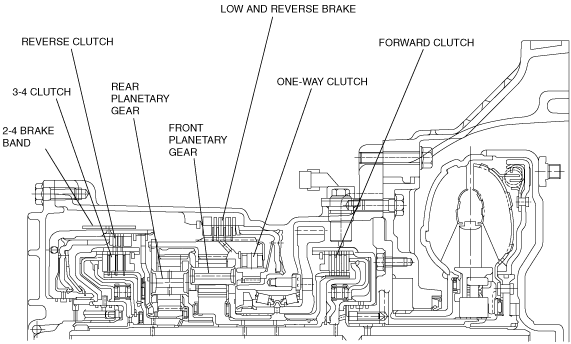

•  The powertrain mechanism of the FN4A-EL type consists of three pairs of clutches, brake, band brake, one-way clutch, and two pairs of single type planetary gears.
am2zzn00000178
am2zzn00000179
