POWERFLOW OPERATION

id051700102300

Component description

Component

Function

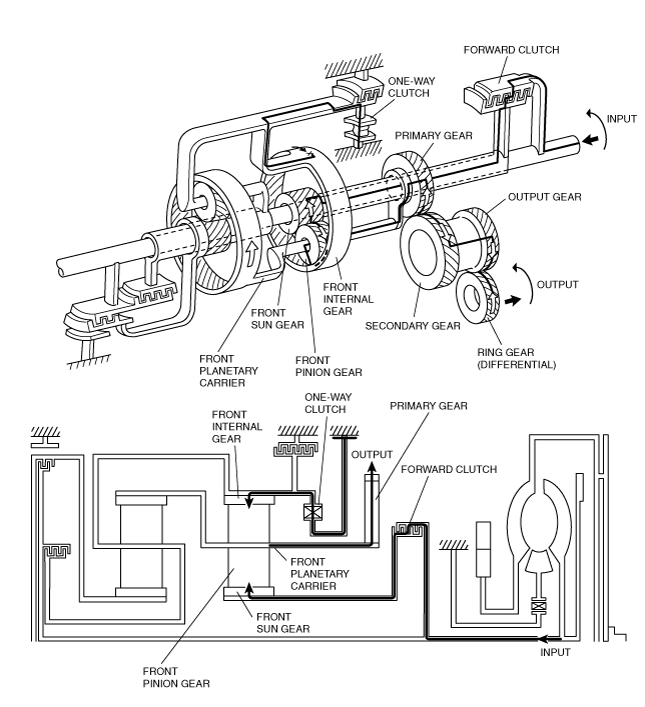

Forward clutch

•  Transmits the input torque from the turbine shaft to the front sun gear.

•  Operates in the forward range of the first, second, or third gear position.

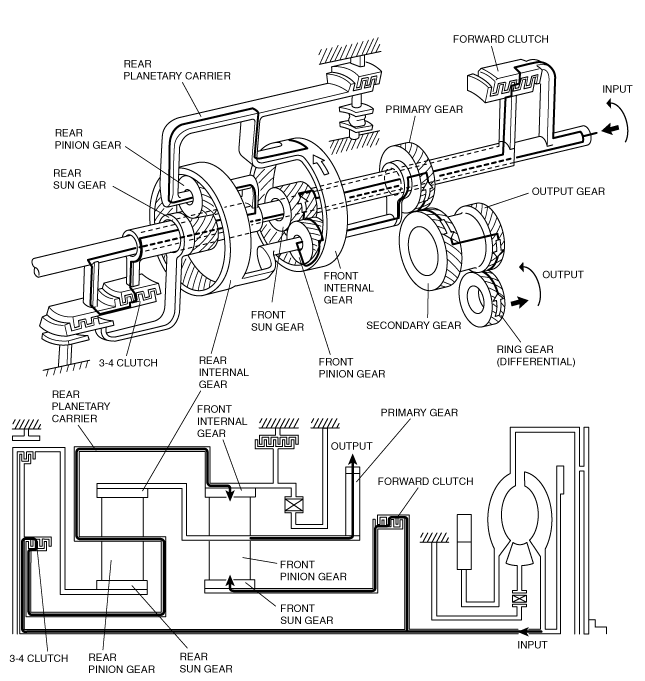

3-4 clutch

•  Transmits the input torque from the turbine shaft to the rear planetary carrier.

•  Operates in the forward range of the third or fourth gear position.

Reverse clutch

•  Transmits the input torque from the turbine shaft to the rear sun gear.

•  Operates when the vehicle is backing up.

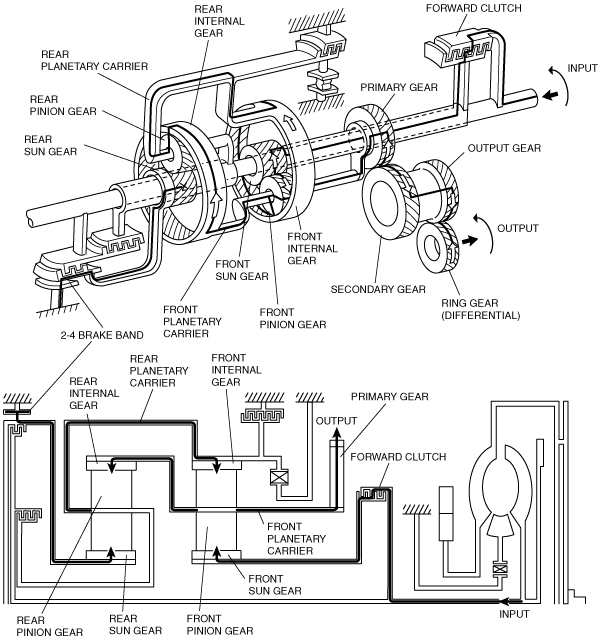

2-4 brake band

•  Locks rotation of the reverse drum and fixes the rear sun gear.

•  Operates in the second or fourth gear position.

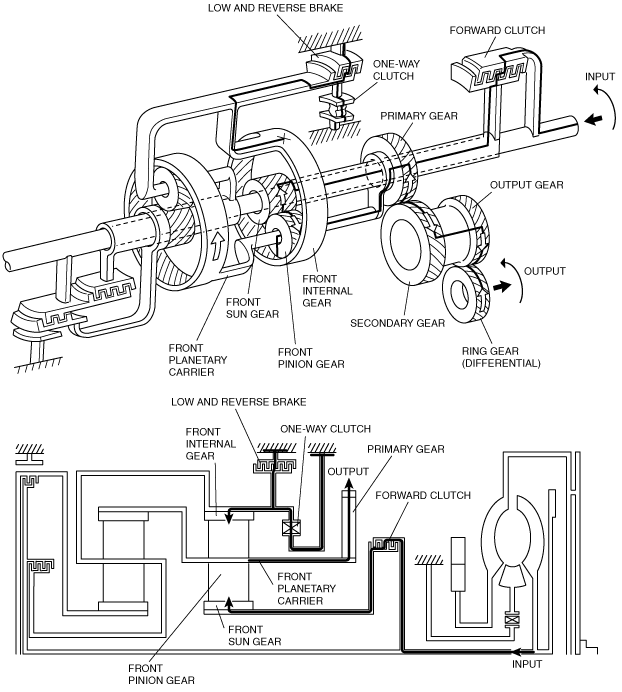

Low and reverse brake

•  Fixes the rotation of the front internal gear.

•  Operates when the vehicle is backing up or in the first gear position (L range HOLD mode 1GR).

One-way clutch

•  Locks the counterclockwise rotation of the front internal gear in the first gear position.

Planetary gear

•  The planetary gear functions as a transmission due to the engagement/ disengagement of clutches and/or brakes, converts the transmitted driving force of the turbine shaft and transmits it to the output gear.

Component	Function
Forward clutch	• Transmits the input torque from the turbine shaft to the front sun gear. • Operates in the forward range of the first, second, or third gear position.
3-4 clutch	• Transmits the input torque from the turbine shaft to the rear planetary carrier. • Operates in the forward range of the third or fourth gear position.
Reverse clutch	• Transmits the input torque from the turbine shaft to the rear sun gear. • Operates when the vehicle is backing up.
2-4 brake band	• Locks rotation of the reverse drum and fixes the rear sun gear. • Operates in the second or fourth gear position.
Low and reverse brake	• Fixes the rotation of the front internal gear. • Operates when the vehicle is backing up or in the first gear position (L range HOLD mode 1GR).
One-way clutch	• Locks the counterclockwise rotation of the front internal gear in the first gear position.
Planetary gear	• The planetary gear functions as a transmission due to the engagement/ disengagement of clutches and/or brakes, converts the transmitted driving force of the turbine shaft and transmits it to the output gear.
