DIRECT ELECTRIC SHIFT CONTROL OPERATION


id051700107800


When Shifting N→ D or N→ R Shift

•  When shifting N→ D or N→ R, the pressure control solenoid is driven to control the clutch engagement pressure optimally.

Up-Down Shift

•  The clutch engagement pressure is directly controlled to be optimal by the duty-cycle solenoid valves.

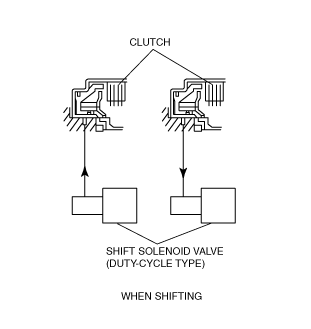

•  When shifting 2GR→ 3GR, 3GR→ 4GR, 3GR→ 2GR, or 4GR→ 3GR, the clutch pressures of engagement side and release side are controlled simultaneously. As a result, the clutch capacities of both clutches are controlled relatively when switching the clutches. This prevents sudden increases in engine speed and clutch interlocks during shifting, realizing smooth and responsive shifting.
am2zzn00000191
