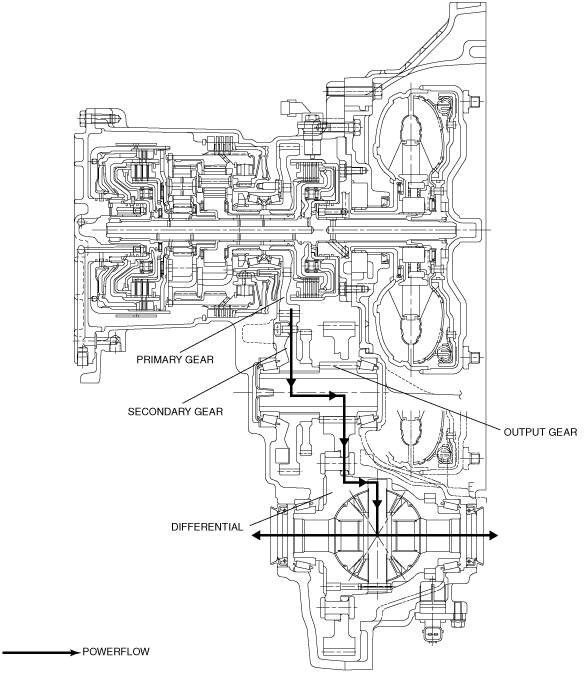

OUTPUT GEAR OUTLINE


id051700111200

•  The two-step final drive mechanism has been adopted by arranging the secondary gear and the output gear on the output gear shaft to miniaturize the transaxle.
