STEERING GEAR AND LINKAGE CONSTRUCTION


id061300246400

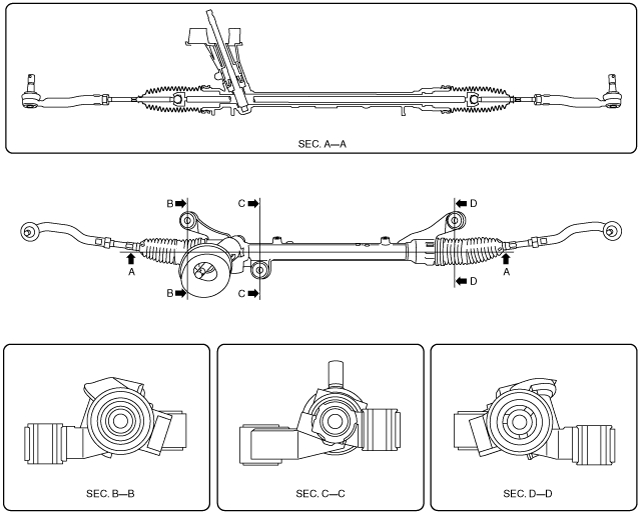

•  A size and weight-reduced rack and pinion system steering gear has been adopted.
•  Response and handling stability have been improved by the heightened support rigidity due to the integration of the steering gear mounts (three locations) and gear housing.
am2zzn00000520
