BASIC SYSTEM STRUCTURAL VIEW

id071100100200

Ventilation System

L.H.D.

am2zzn00000265

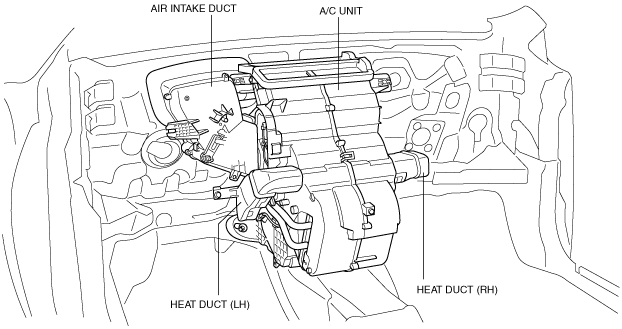

R.H.D.

am2zzn00000278

Refrigerant System

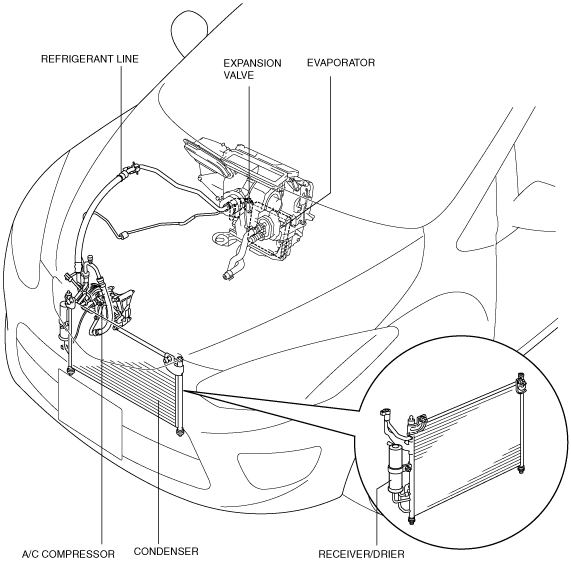

L.H.D. (ZJ, ZY)

am2zzn00000279

L.H.D. (MZ-CD 1.4 DI Turbo)

am2zzn00000939

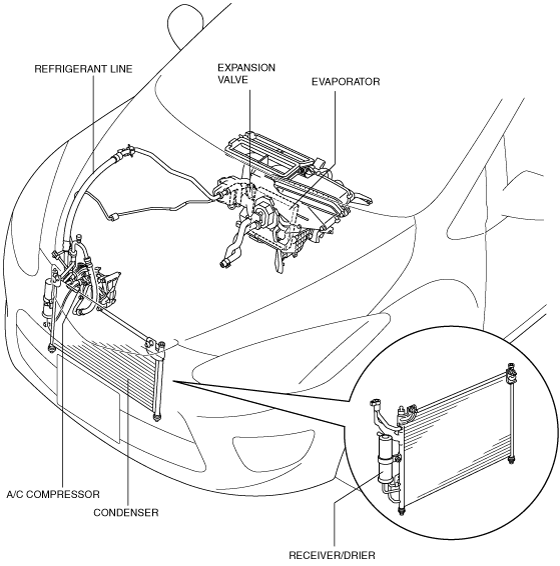

R.H.D. (ZJ, ZY)

am2zzn00000280

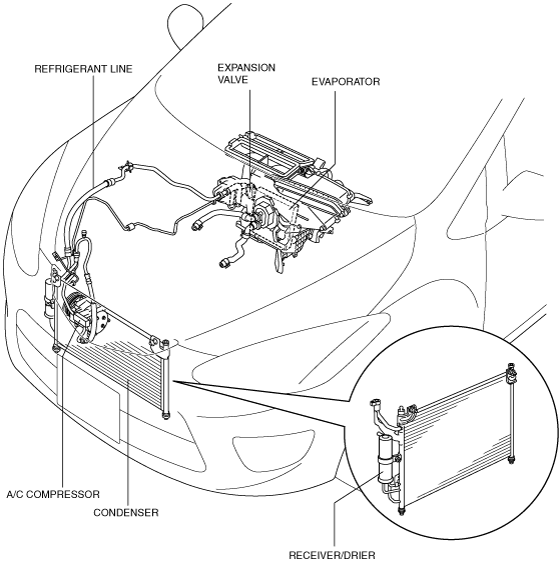

R.H.D. (MZ-CD 1.4 DI Turbo)

am2zzn00000940
