CONDENSER CONSTRUCTION


id071100100800

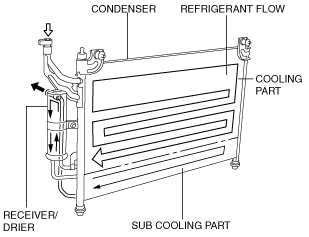

•  A sub-cooling condenser has been adopted (a receiver/driver is equipped to a multi-flow condenser which circulates refrigerant through a few separate tubes).
•  The sub cool condenser separates liquid-gas refrigerant initially cooled at the condenser via the receiver/drier, where it returns again to the condenser sub cooling part and is cooled, accelerating liquefaction and improving cooling capacity.
am2zzn00001145
