AIR INTAKE DUCT CONSTRUCTION/OPERATION

id071100352700

Construction

• Consists of the following parts:

― Air intake door

― Air intake actuator (full-auto air conditioner)

am2zzn00000271

Operation

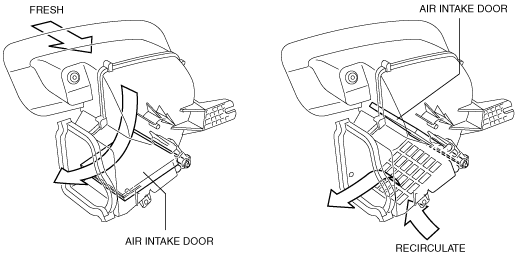

Air intake door

• The air intake door moves in the recirculate direction and fresh air direction in line with the operation of the air intake link.

am2zzn00000272
