CONTROL SYSTEM STRUCTURAL VIEW [FULL-AUTO AIR CONDITIONER]

id0740a1100200

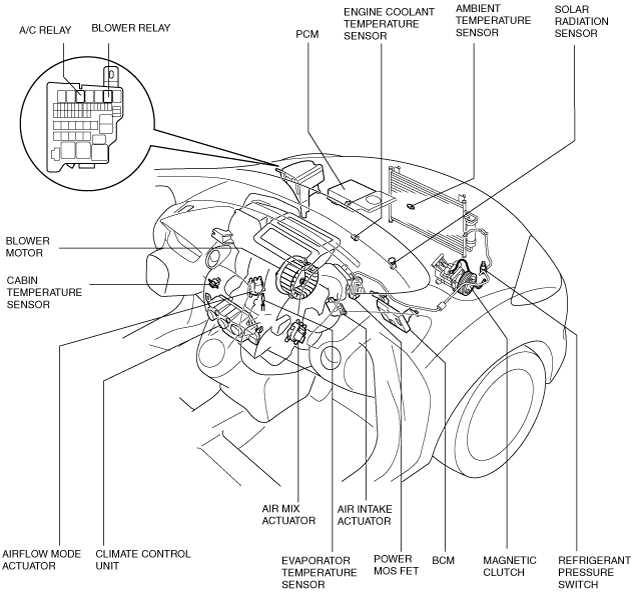

L.H.D. (ZJ, ZY)

am2zzn00000288

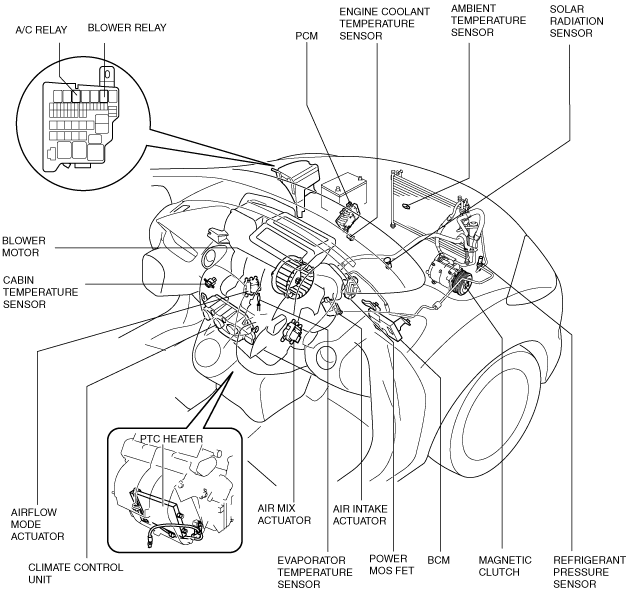

L.H.D. (MZ-CD 1.4 DI Turbo)

am2zzn00000945

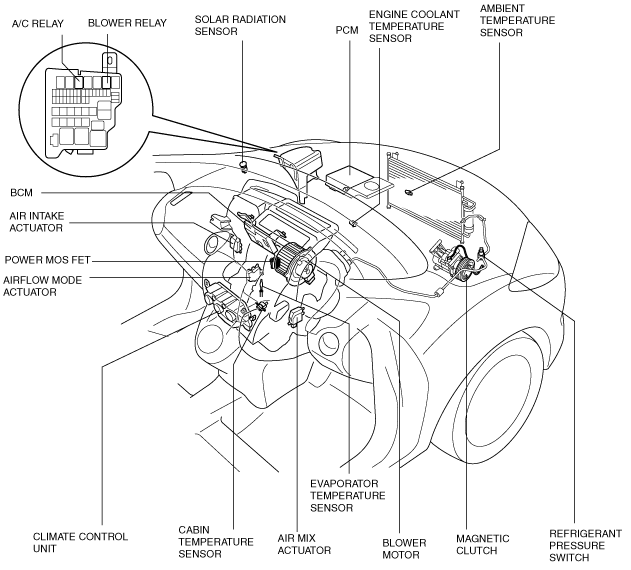

R.H.D. (ZJ, ZY)

am2zzn00000289

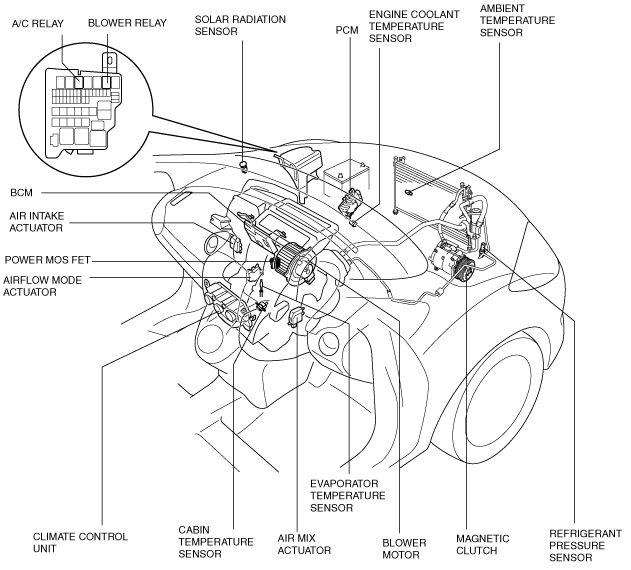

R.H.D. (MZ-CD 1.4 DI Turbo)

am2zzn00000946
