•  Controls the supply voltage to the blower motor according to the gate voltage sent from the climate control unit and adjusts the rotation speed (airflow volume).

acxuun00000169

•  There are three electrodes: source, gate, and drain electrodes.

acxuun00000230

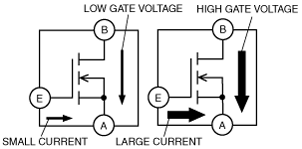

•  The resistance between terminals B and A (between drain and source) changes according to the voltage (gate voltage) applied to terminal E (gate).

acxuun00000171

•  When the gate voltage increases, the resistance between terminals B and A decreases, allowing the current to flow easily.
