AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1801400

1.  Disconnect the negative battery cable.

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Remove the glove compartment cover. (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)

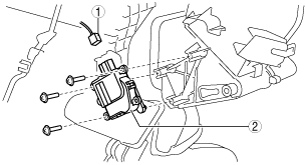

4.  Remove in the order indicated in the table.

am2zzw00001062

1	Connector
2	Air intake actuator

5.  Install in the reverse order of removal.
