AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER]

id0740a1801500

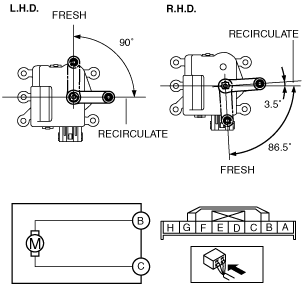

1.  Connect battery positive voltage to terminal B or C and ground to terminal C or B of the air intake actuator.

am2zzn00000290

2.  Verify that the air intake actuator operates as shown below.

•   If there is any malfunction, replace the air intake actuator.

L.H.D.

Connection

Movement

C

B
B+
GND
Recirculate → Fresh
GND
B+
Fresh → Recirculate

R.H.D.

Connection

Movement

B

C
B+
GND
Recirculate → Fresh
GND
B+
Fresh → Recirculate
