CONTROL SYSTEM STRUCTURAL VIEW [MANUAL AIR CONDITIONER]

id0740a2100200

L.H.D. (ZJ, ZY)

am2zzn00000303

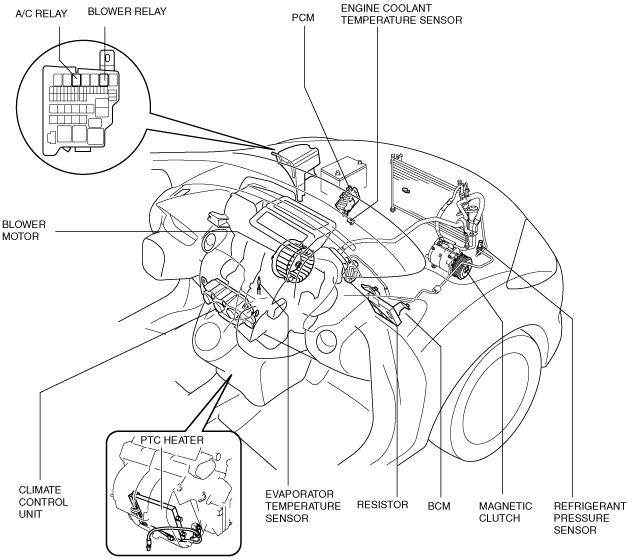

L.H.D. (MZ-CD 1.4 DI Turbo)

am2zzn00000950

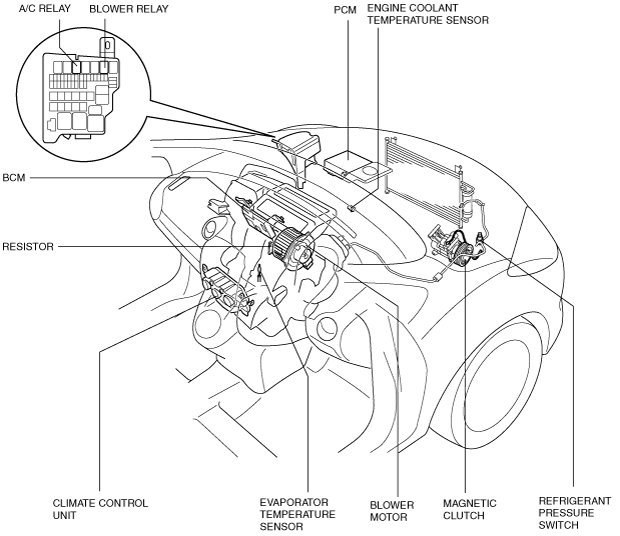

R.H.D. (ZJ, ZY)

am2zzn00000455

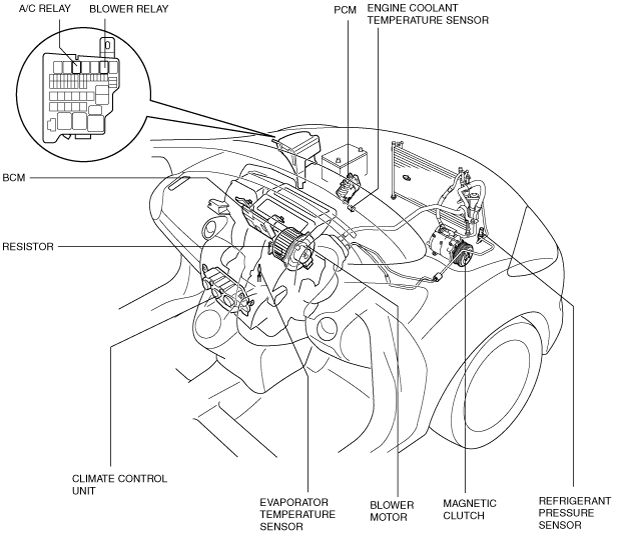

R.H.D. (MZ-CD 1.4 DI Turbo)

am2zzn00000951
