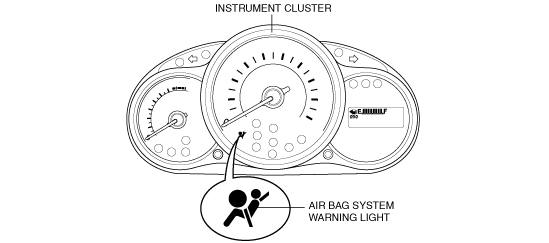

•  The air bag system warning light is built into the instrument cluster.

am2zzn00000121

•  When the ignition switch is turned to the ON position, the air bag system warning light illuminates for approx. 6 s to indicate that the SRS air bag system is performing initialization diagnostics. If there is no malfunction in the SRS air bag system, the indicator light turns off.

•  If the SAS control module detects a malfunction in the SRS air bag system, it sends a warning signal as a CAN signal to the instrument panel to illuminate or flash the air bag system warning light and display the DTC.

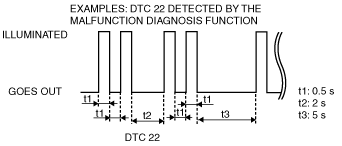

•  If there is a malfunction in the SRS air bag system, DTCs are displayed according to the following patterns.

am2zzn00000577

•  After the air bag system warning light repeats the display of the DTC 5 times, it remains illuminated. When the indicator light illuminates continuously, other DTCs are not displayed even if there is a malfunction occurring in another location, and the indicator light continues to remain illuminated.

•  If there are several malfunctions in the SRS air bag system, the DTC of the highest priority ranking is displayed first.
