FRONT BUCKLE REMOVAL/INSTALLATION

id081100800400

European (L.H.D.) Specs.

Driver side

1.  Turn the ignition switch to the LOCK position.

2.  Disconnect the negative battery cable.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4.  Disconnect the front buckle connector.

5.  Remove the front buckle connector clip from the seat.

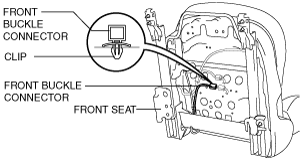

am2zzw00001931

6.  Remove the bands and clips in the positions shown in the figure.

am2zzw00001886

7.  Remove the bolt.

8.  Remove the front buckle.

9.  Install in the reverse order of removal.

Passenger side

1.  Turn the ignition switch to the LOCK position.

2.  Disconnect the negative battery cable.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4.  Disconnect the front buckle connector.

am2zzw00001887

5.  Remove the bolt.

6.  Remove the front buckle.

7.  Install in the reverse order of removal.

Australian, U.K. Specs.

Driver side

1.  Turn the ignition switch to the LOCK position.

2.  Disconnect the negative battery cable.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4.  Remove the front buckle connector clip from the seat.

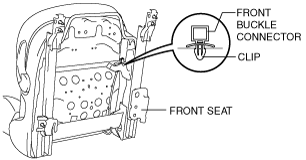

am2zzw00001932

5.  Remove the bands and clips in the positions shown in the figure.

am2zzw00001933

6.  Remove the bolt.

7.  Remove the front buckle.

8.  Install in the reverse order of removal.

Passenger side

1.  Turn the ignition switch to the LOCK position.

2.  Disconnect the negative battery cable.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4.  Disconnect the front buckle connector.

am2zzw00001934

5.  Remove the bolt.

6.  Remove the front buckle.

7.  Install in the reverse order of removal.

General (L.H.D.) Specs.

Driver side

1.  Turn the ignition switch to the LOCK position.

2.  Disconnect the negative battery cable.

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

4.  Remove the front buckle connector clip from the seat.

am2zzw00000448

5.  Remove the clips in the positions shown in the figure.

am2zzw00002008

6.  Remove the bolt.

7.  Remove the front buckle.

8.  Install in the reverse order of removal.

Passenger side

1.  Remove the bolt.

am2zzw00001889

2.  Remove the front buckle.

3.  Install in the reverse order of removal.
