DTC B10D3:23 [ADVANCED KEYLESS AND START SYSTEM]

id0902e1388200

Detection Condition

• Request switch (RF) ON signal detected while driving

Possible Causes

• Short to wiring harness between outer handle (RF) and keyless control module

• Request switch (RF) malfunction

• Keyless control module malfunction

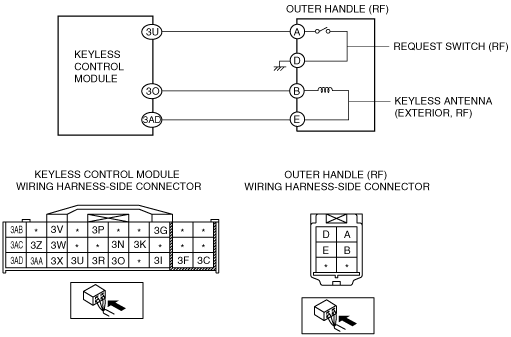

System Wiring Diagram

am2zzw00000938

Diagnostic Procedure

Step

Inspection

Action

1

INSPECT OUTER HANDLE (RF) CONNECTOR

•  Turn the ignition switch to the LOCK position.

•  Disconnect the negative battery cable.

•  Disconnect the outer handle (RF) connector.

•  Inspect the outer handle (RF) connector. (Corrosion, damage, and disconnected pins)

•  Are the connector and terminals normal?

Yes

Go to the next step.

No

Repair/replace the outer handle (RF) connector or terminal.

2

INSPECT KEYLESS CONTROL MODULE CONNECTOR

•  Disconnect the keyless control module connector.

•  Inspect the keyless control module connector. (Corrosion, damage, and disconnected pins)

•  Are the connector and terminals normal?

Yes

Go to the next step.

No

Repair/replace the keyless control module connector or terminal.

3

INSPECT WIRING HARNESS BETWEEN OUTER HANDLE (RF) AND KEYLESS CONTROL MODULE

•  Inspect the wiring harness between outer handle (RF) connector terminal A and keyless control module connector terminal 3U for the following:

―  Short to body ground

•  Is the wiring harness normal?

Yes

Go to the next step.

No

Repair or replace the wiring harness between the outer handle (RF) and keyless control module.

4

INSPECT REQUEST SWITCH (RF)

•  Inspect the request switch (RF).
(See REQUEST SWITCH INSPECTION [ADVANCED KEYLESS AND START SYSTEM].)

•  Is the request switch (RF) normal?

Yes

Go to the next step.

No

Replace the request switch (RF).

(See REQUEST SWITCH REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)

5

VERIFY DTCs

•  Reconnect the disconnected connectors.

•  Connect the negative battery cable.

•  Clear DTCs using the M-MDS.
(See CLEARING DTC [ADVANCED KEYLESS AND START SYSTEM].)

•  Verify DTCs using the M-MDS.
(See DTC INSPECTION [ADVANCED KEYLESS AND START SYSTEM].)

•  Is DTC B10D3:23 displayed?

Yes

Replace the keyless control module.

(See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	INSPECT OUTER HANDLE (RF) CONNECTOR • Turn the ignition switch to the LOCK position. • Disconnect the negative battery cable. • Disconnect the outer handle (RF) connector. • Inspect the outer handle (RF) connector. (Corrosion, damage, and disconnected pins) • Are the connector and terminals normal?	Yes	Go to the next step.
1		No	Repair/replace the outer handle (RF) connector or terminal.
2	INSPECT KEYLESS CONTROL MODULE CONNECTOR • Disconnect the keyless control module connector. • Inspect the keyless control module connector. (Corrosion, damage, and disconnected pins) • Are the connector and terminals normal?	Yes	Go to the next step.
2		No	Repair/replace the keyless control module connector or terminal.
3	INSPECT WIRING HARNESS BETWEEN OUTER HANDLE (RF) AND KEYLESS CONTROL MODULE • Inspect the wiring harness between outer handle (RF) connector terminal A and keyless control module connector terminal 3U for the following: ― Short to body ground • Is the wiring harness normal?	Yes	Go to the next step.
3		No	Repair or replace the wiring harness between the outer handle (RF) and keyless control module.
4	INSPECT REQUEST SWITCH (RF) • Inspect the request switch (RF). (See REQUEST SWITCH INSPECTION [ADVANCED KEYLESS AND START SYSTEM].) • Is the request switch (RF) normal?	Yes	Go to the next step.
4		No	Replace the request switch (RF). (See REQUEST SWITCH REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)
5	VERIFY DTCs • Reconnect the disconnected connectors. • Connect the negative battery cable. • Clear DTCs using the M-MDS. (See CLEARING DTC [ADVANCED KEYLESS AND START SYSTEM].) • Verify DTCs using the M-MDS. (See DTC INSPECTION [ADVANCED KEYLESS AND START SYSTEM].) • Is DTC B10D3:23 displayed?	Yes	Replace the keyless control module. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM].)
5		No	DTC troubleshooting completed.
