FRONT BUMPER DISASSEMBLY/ASSEMBLY
id091000405200
1. Remove the front fog light. (see FRONT FOG LIGHT REMOVAL/INSTALLATION)
2. Remove the radiator grille. (see RADIATOR GRILLE REMOVAL/INSTALLATION)
3. Disassemble in the order indicated in the table.
Standard Type
am2zzw00001607
|
|
1
|
Front bumper face
|
|
2
|
Bracket
|
|
3
|
Front bumper retainer
|
|
4
|
Screw
|
|
5
|
Front bumper mesh
|
|
6
|
Hole cover (Vehicles without front fog light)
|
|
7
|
Front fog light cover (Vehicles with front fog light)
|
|
8
|
Rivet
|
|
9
|
Airdam skirt
|

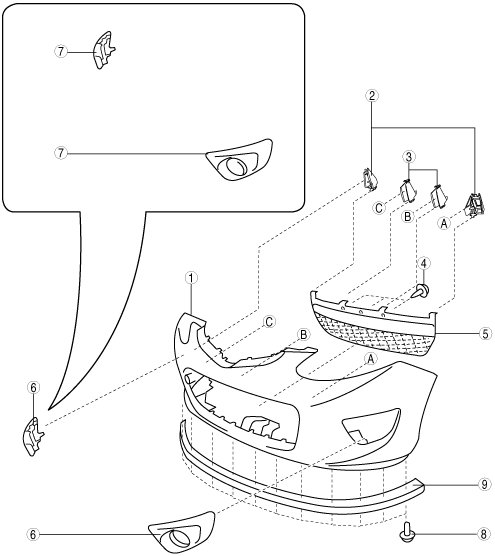

Sport Type
am2zzw00002577
|
|
1
|
Front bumper face
|
|
2
|
Bracket
|
|
3
|
Front bumper retainer
|
|
4
|
Screw
|
|
5
|
Front bumper mesh
|
|
6
|
Front fog light cover (Vehicles with front fog light)
|
|
7
|
Hole cover (Vehicles without front fog light)
|
|
8
|
Rivet
|
|
9
|
Airdam skirt
|
4. Assemble in the reverse order of disassembly.
