REAR BUMPER REMOVAL/INSTALLATION

id091000405300

1.  Disconnect the negative battery cable.

2.  Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION)

3.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION)

4.  Remove the fastener A.

am2zzw00001609

5.  Remove the fasteners B.

am2zzw00001610

6.  Remove the screws C.

am2zzw00001611

7.  Pull the rear bumper in the direction of arrow (1) shown in the figure to disengage the bumper from the rear bumper slider, then remove the rear bumper in the direction of arrow (2).

am2zzw00001612

Caution

•  When disengaging the rear bumper from the rear bumper slider, the rear bumper could fall and be damaged. Support the rear bumper so that it does not fall.

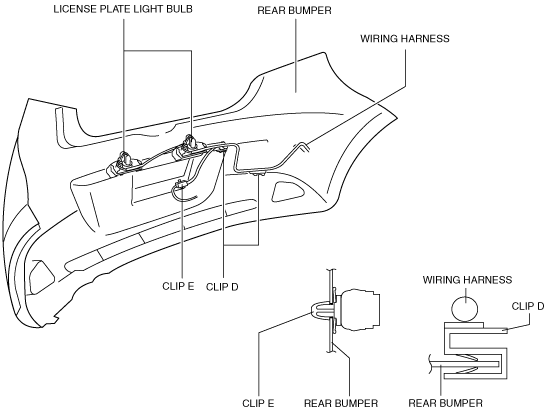

8.  Remove clips D,E and the license plate light bulb, then set aside the wiring harness to the vehicle side.

am2zzw00001788

9.  Disconnect the rear fog light connector. (Vehicles with rear fog light)

10.  Install in the reverse order of removal.

Rear Bumper Installation Note

1.  Spread the rear bumper ends apart.

2.  Assemble the rear bumper to the body.

3.  Press the rear bumper connecting area in the direction of the arrow shown in the figure to engage with the rear bumper slider.

am2zzw00001613
