POWER OUTER MIRROR SWITCH INSPECTION

id091200420500

1.  Turn the ignition switch to the ON position.

2.  Turn the ignition switch to the LOCK position and verify that the power outer mirror switch can be operated for approx. 43 s.

•  If the power outer mirror switch cannot be operated for approx. 43 s after the ignition switch is turned to the LOCK position, or if the switch can still be operated after approx. 43 s, replace the power outer mirror switch.

3.  Disconnect the negative battery cable.

4.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

5.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

6.  Remove the switch panel. (See FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY.)

7.  Using a tester, verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power outer mirror switch.

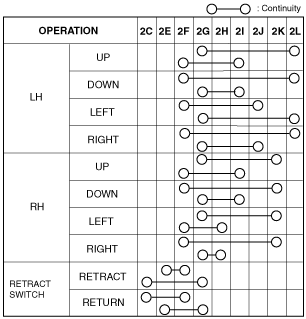

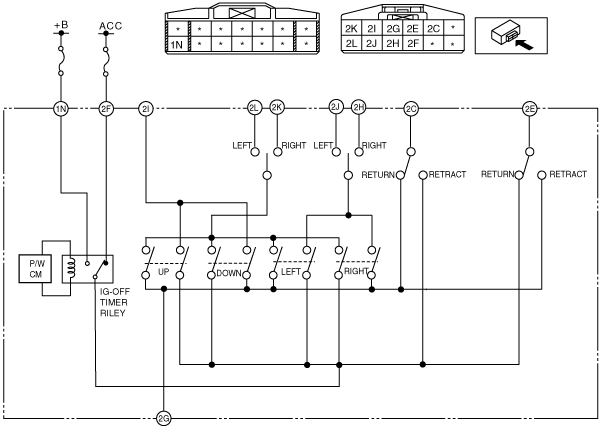

L.H.D.

am2zzw00003831

am2zzw00003833

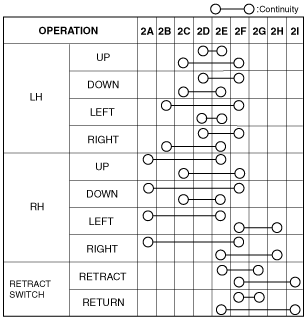

R.H.D.

am2zzw00003832

am2zzw00003830
