•  The left/right selection switch establishes the left or right side outer mirror circuit, and current is supplied in one of the four directions according to the position of the mirror glass adjustment switch. As a result, the motor rotates either up or down, left or right.

am2zzn00001147

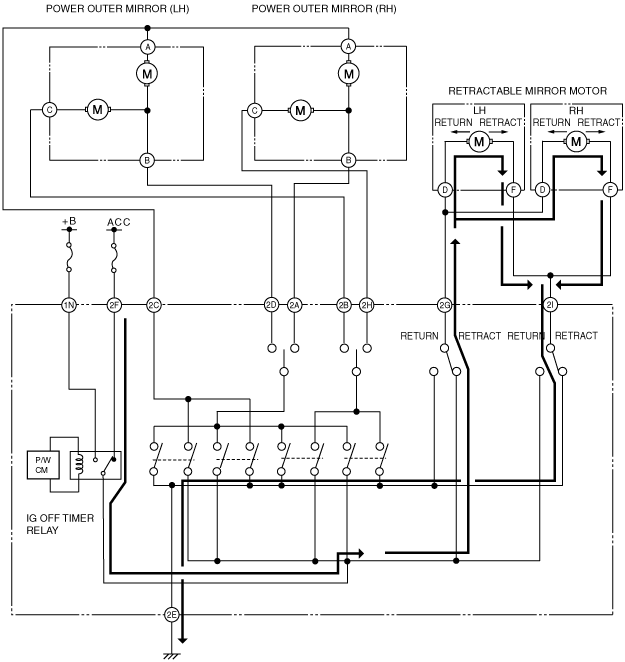

•  When the retract/return switch is moved to the retract position, a circuit is established, and the retract/return motor rotates in the retracting direction.

•  During return operation, the motor rotates in the opposite (returning) direction.

am2zzn00001148

•  Allows operation of the power outer mirror for approx. 43 s after the ignition switch has been turned from the ON to the LOCK position.
