REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION

id091300455800

1.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

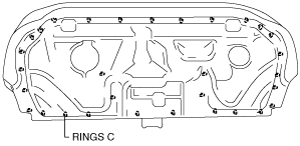

2.  Remove rings C, then remove the seat cushion trim from the seat cushion pad.

am2zzw00002217

3.  Install in the reverse order of removal.
