FRONT SEAT BACK TRIM REMOVAL/INSTALLATION [VEHICLES WITHOUT SIDE AIR BAGS]

id091300487738

Caution

•  After removing a front seat, do not operate the slider lever. If the slider lever is operated, the left and right slide positions will deviate, and the slide adjuster may be damaged after the front seat is installed.

•  Verify that there are no malfunctions in the sliding mechanism after installing a front seat.

•  When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean rag so as not to damage or soil the seat.

L.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

3.  Remove the headrest.

4.  Slide hook A in the order of (1), (2), (3) shown in the figure to detach it from hook B.

am2zzw00002458

5.  Partially peal back the front seat back pad, release the pole guide tabs in the direction of arrow (4) shown in the figure, then pull the pole guide out in the direction of arrow (5).

am2zzw00002459

6.  Pull out part A of the seat back pad to the front of the seat.

am2zzw00000522

7.  Remove the seat back trim and the seat back pad as a single unit from the seat frame by pulling them in the direction of the arrow.

am2zzw00002460

8.  Partially peal back the seat back trim from the seat back pad, remove rings C in the order of (6), (7) shown in the figure, remove the surface fastener, then remove the seat back trim.

am2zzw00003757

9.  Install in the reverse order of removal.

R.H.D.

1.  Disconnect the negative battery cable.

2.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

3.  Remove the headrest.

4.  Slide hook A in the order of (1), (2), (3) shown in the figure to detach it from hook B.

am2zzw00002462

5.  Partially peal back the front seat back pad, release the pole guide tabs in the direction of arrow (4) shown in the figure, then pull the pole guide out in the direction of arrow (5).

am2zzw00002463

6.  Pull out part A of the seat back pad to the front of the seat.

adejjw00001864

7.  Remove the seat back trim and the seat back pad as a single unit from the seat frame by pulling them in the direction of the arrow.

am2zzw00003782

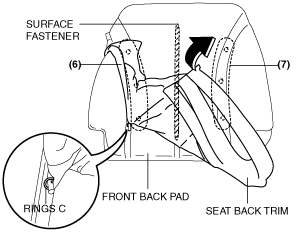

8.  Partially peal back the seat back trim from the seat back pad, remove rings C in the order of (6), (7) shown in the figure, remove the surface fastener, then remove the seat back trim.

am2zzw00003758

9.  Install in the reverse order of removal.
