FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

id091400429400

5HB

1.  To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in}.

am2zzw00000662

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(5)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

4.  Remove the service hole cover.

am2zzw00000663

5.  Remove the tab, then remove the door lock-link bracke. (Driver’s door).

am2zzw00000664

6.  Remove the service hole cover.

am2zzw00003321

7.  Remove the screw from the service hole.

Note

•  The screw cannot be removed because of the stopper.

am2zzw00000666

8.  Lift the clip in the directon of the arrow (1), and pull out the key rod in the direction of the arrow (2).

am2zzw00000667

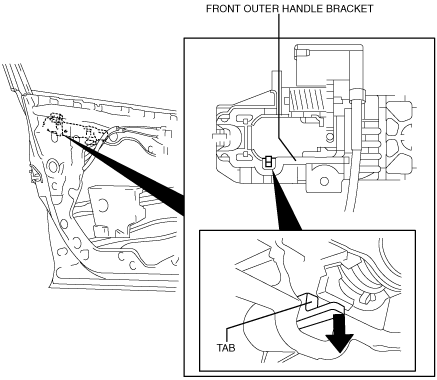

9.  Press the tab on the front outer handle bracket in the direction of the arrow.

am2zzw00000668

10.  Maintaining the condition in Step 9, remove the front key cylinder.

am2zzw00000669

11.  Using a tape-wrapped fastener remover, press up the collar cap in the direction of the arrow shown in the arrow, press aside the front door key cylinder tabs (1), and remove the collar cover from the front door key cylinder.

am2zzw00000670

12.  Install in the reverse order of removal.

3HB

1.  To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in}.

am2zzw00000662

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(5)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

4.  Remove the sealing sheet.

am2zzw00003317

5.  Remove the nuts.

6.  Remove the fastener.

7.  Remove the rod protector.

am2zzw00003318

8.  Remove the service hole cover.

am2zzw00003322

9.  Remove the screw from the service hole.

Note

•  The screw cannot be removed because of the stopper.

am2zzw00003323

10.  Lift the clip in the directon of the arrow (1), and pull out the key rod in the direction of the arrow (2).

am2zzw00003324

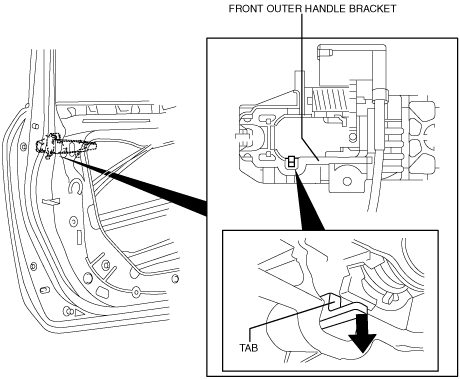

11.  Press the tab on the front outer handle bracket in the direction of the arrow.

am2zzw00003325

12.  Maintaining the condition in Step 11, remove the front key cylinder.

am2zzw00000669

13.  Using a tape-wrapped fastener remover, press up the collar cap in the direction of the arrow shown in the arrow, press aside the front door key cylinder tabs (1), and remove the collar cover from the front door key cylinder.

am2zzw00000670

14.  Install in the reverse order of removal.
