FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

id091400429500

5HB

1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 110 mm {4.33 in}.

am2zzw00000671

2. Disconnect the negative battery cable.

3. Remove the following parts:

(1) Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3) Front inner handle (See DOOR LOCK-LINK SWITCH INSPECTION.)

(4) Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(5) Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(6) Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

4. Disconnect the key rod from the front outer handle bracket.

am2zzw00000706

5. Remove the screw

am2zzw00000707

6. Detach the clips.

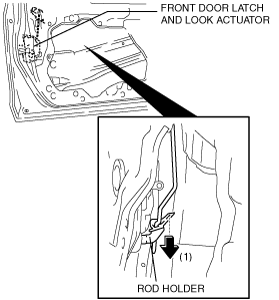

7. Press down the rod holder of the front door latch and lock actuator in the direction of the arrow.

am2zzw00000708

8. Maintaining the condition in Step 7, remove the front door latch and lock actuator.

am2zzw00000672

9. Install in the reverse order of removal.
