REAR DOOR LOCK ACTUATOR INSPECTION [5HB]

id0914004307d4

1.  To access the glass installation bolt, position the rear door glass so that the distance from the top of the rear door glass to the upper part of the rear beltline molding is approx. 210 mm {8.27 in}.

am2zzw00000681

2.  Disconnect the negative battery cable.

3.  Remove the following parts:

(1)  Sail inner garnish (See SAIL INNER GARNISH REMOVAL/INSTALLATION.)
(2)  Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)
(3)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)
(4)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION [5HB].)
(5)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)
(6)  Rear door module panel (See REAR DOOR MODULE PANEL REMOVAL/INSTALLATION.)
(7)  Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION [5HB].)

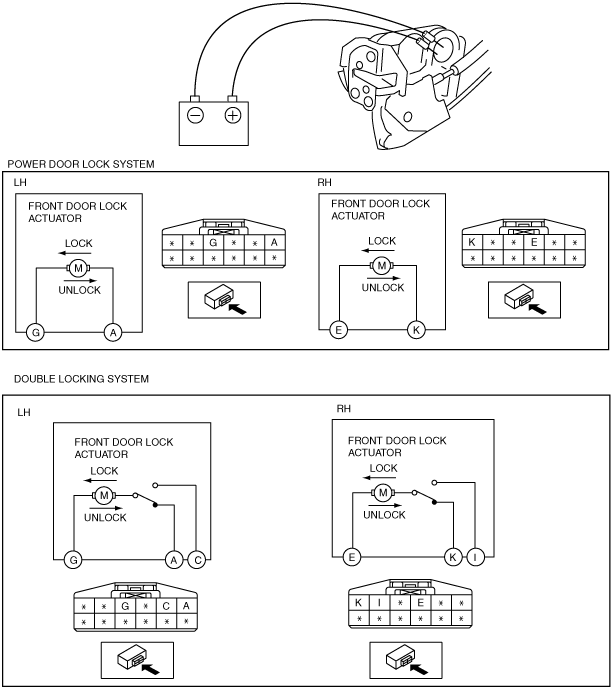

4.  Apply battery positive voltage and connect the ground to each terminal, and then verify the operation.

am2zzw00003790

•  If not as indicated in the table, replace the front door latch and lock actuator.

Power Door Lock System

Operation

Terminal

B+

Ground
LOCK
RH
K
E
LH
A
G
UNLOCK
RH
E
K
LH
G
A

Double Locking System

Operation

Terminal

B+

Ground
LOCK
RH
I
E
LH
C
G
DOUBLE LOCK
RH
K
E
LH
A
G
UNLOCK
RH
E
K,I
LH
G
A,C
