LIFTGATE LOCK ACTUATOR INSPECTION

id091400433200

1.  Disconnect the negative battery cable.

2.  Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Remove the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

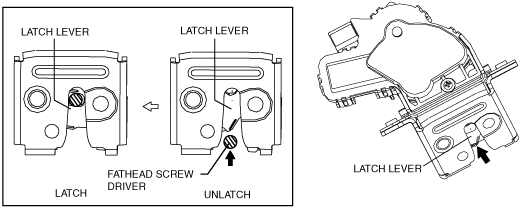

4.  Press the latch in using a flathead screwdriver to inspect the latch lever condition.

am2zzw00002602

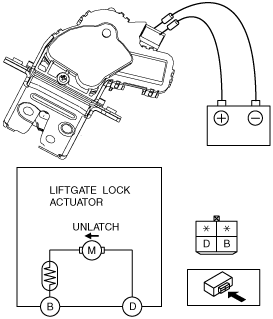

5.  Apply battery positive voltage and connect the ground to each terminal, and then verify the operation.

am2zzw00000693

•  If not as indicated in the table, replace the liftgate latch and lock actuator.

Lock actuator operation	Terminal
	B+	Ground
UNLATCH	D	B
