COIL ANTENNA REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM]

id0914004359b0

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Disconnect the coil antenna connector.

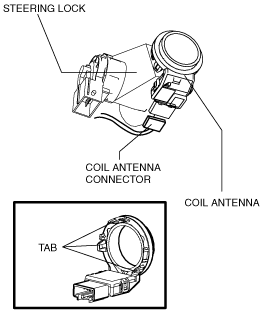

am2zzw00000570

4.  Detach the coil antenna hooks and remove the coil antenna from the steering lock.

5.  Install in the reverse order of removal.
