KEYLESS RECEIVER REMOVAL/INSTALLATION [ADVANCED KEYLESS AND START SYSTEM]

id0914004383b0

1.  Disconnect the negative battery cable.

2.   Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.   Remove the glove compartment cover. (See GLOVE COMPARTMENT COVER REMOVAL/INSTALLATION.)

4.  Remove in the order indicated in the table.

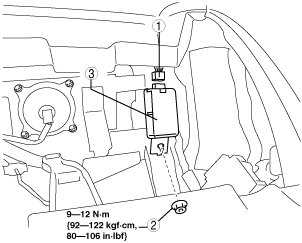

am2zzw00000540

1	Connector
2	Nut
3	Keyless receiver

5.  Install in the reverse order of removal.
