ADVANCED KEYLESS START FUNCTION OPERATION [ADVANCED KEYLESS AND START SYSTEM]

id0914b0533100

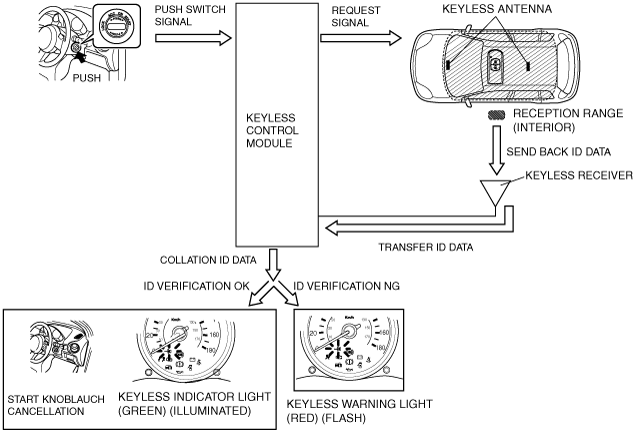

1.  When the start knob is pressed, a push switch signal is input to the keyless control module.

2.  The keyless control module transmits a request signal via all the keyless antennas in the vehicle.

3.  The advanced key receives the request signal from the inside antenna, and transmits ID data to the keyless receiver.

4.  The keyless receiver transmits the received ID data to the keyless control module.

5.  The keyless control module verifies the ID data, and if it determines that the programmed advanced key is inside the vehicle, releases the start knob of the steering lock unit. The keyless indicator light (green) in the instrument cluster illuminates at the same time to indicate that the start knob is operable.

―  If the ID verification is not acceptable (for reasons such as an unprogrammed advanced key, or advanced key battery depletion), the start knob is not released and the keyless warning light (red) in the instrument cluster illuminates to indicate that the start knob is inoperable.

―  For vehicles with the immobilizer system, ID verification is performed when the start knob is turned to the ON position. If the verification is acceptable, permission is given to start the engine.

6.  The engine can be started by turning the start knob to the START position.
