THEFT-DETERRENT SYSTEM OPERATION [KEYLESS ENTRY SYSTEM]
id0914b3100800

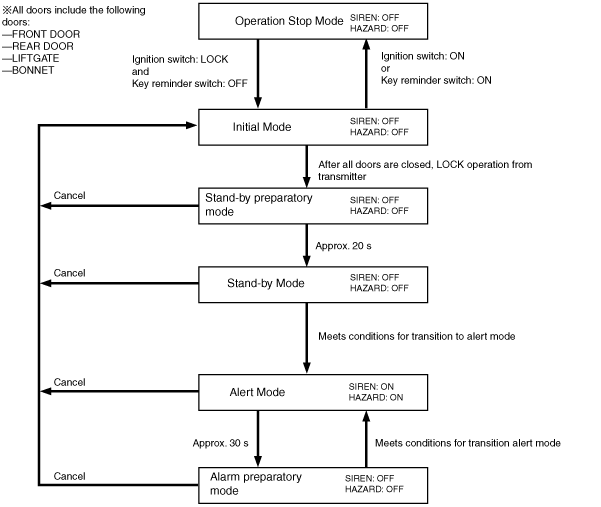

Mode Transition
• The theft-deterrent control module switches the theft-deterrent system mode based on the ignition switch and door conditions.
Operation Stop Mode
• In this mode, all theft-deterrent system operations are stopped.
• The system changes to the operation stop mode when any of the following conditions are met.
-
― Ignition switch at ON
― Key reminder switch on
Initial Mode
• This mode is the preparatory mode before changing to the stand-by mode. The system does not change directly to the alert mode from this mode.
Transition condition to the initial mode
-
• The system changes from the operation stop mode to the initial mode if all of the following conditions are met.
-
― Ignition switch at LOCK
― Key reminder switch off
-
• The system changes from the stand-by mode, alert mode 1, and alert mode 2 to the initial mode if any of the following cancel conditions are met.
Transition condition to the stand-by preparation mode
-
• The system changes to the stand-by preparation mode if any of the following conditions are met.
-
― Locked using the transmitter LOCK button with the front doors, liftgate, and bonnet closed.
Stand-by preparatory mode
• This is mode prior to the stand-by mode.
• If the cancel conditions are met, the system changes to the initial mode.
Transition condition to the stand-by mode
-
• If the stand-by preparation mode continues for approx. 20 s, the system changes to the stand-by mode.
Cancel conditions
-
• If any of the following conditions are met, the stand-by preparation mode is canceled and the system changes to the initial mode.
-
― Any door latch switch off (door is open), or liftgate latch switch on (liftgate is open), or bonnet latch switch off (bonnet is open)
― Any door lock-link switch UNLOCK
― Key reminder switch on, or ignition switch ON
― Unlock operation using transmitter
Stand-by Mode
• The system starts monitoring approx. 20 s after the doors are locked for unauthorized door opening/closing, or movement from an intrusion into the vehicle such as a window being broken. If any unauthorized operation is detected, the system changes to the alert mode.
• If the cancel condition is met, the system changes to the initial mode.
Transition condition to the alert mode
-
• If any of the following conditions are met, the system changes to the alert mode.
-
― Ignition switch ON (key reminder switch off)
― Door latch switch off (door is open)
― Liftgate latch switch on (liftgate is open)
― Bonnet latch switch off (bonnet is open)
― Door lock-link switch UNLOCK
― Intrusion into vehicle is detected by intruder sensor
Cancel Condition
-
• If any of the following conditions are met, the stand-by mode is canceled and the system changes to the initial mode.
-
― Unlock operation using transmitter
― Key reminder switch on, ignition switch ON, and engine start
Alert Mode

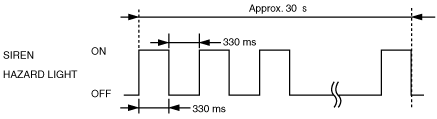

• In this mode, the horn and hazard warning lights are operated to alert the surrounding area.
• When the alarm period (approx. 30 s) has elapsed, the system changes to the alert preparatory mode.
• If the cancel conditions are met, the system changes to the initial mode.
Transition condition to the alert preparation mode
-
• When the alarm period (approx. 30 s) has elapsed, the system changes to the alert preparation mode.
• The alarm period is not extended even if a transition condition to alert 1 mode is met again during an alarm period.
Cancel Condition
-
• If any of the following conditions are met, the alert mode is canceled and the system changes to the initial mode.
-
― Unlock operation using transmitter
― Key reminder switch on, ignition switch ON, and engine start
Alert preparation mode
• In the alert preparation mode, the horn and hazard warning light are not operated, however, the alarm triggers immediately if the condition is changed.
• If the cancel conditions are met, the system changes to the initial mode.
Transition condition to alert mode
-
• The system changes to the alert mode if any of the following conditions are met.
-
― Ignition switch ON (key reminder switch off)
― Door latch switch off (door is open)
― Liftgate latch switch on (liftgate is open)
― Bonnet latch switch off (bonnet is open)
― Door lock-link switch UNLOCK
― Intrusion into vehicle is detected by intruder sensor
Cancel Condition
-
• If any of the following conditions are met, the alert preparation mode is canceled and the system changes to the initial mode.
-
― Unlock operation using transmitter
― Key reminder switch on, ignition switch ON, and engine start
