INTRUDER SENSOR FUNCTION [KEYLESS ENTRY SYSTEM]


id0914b3115300

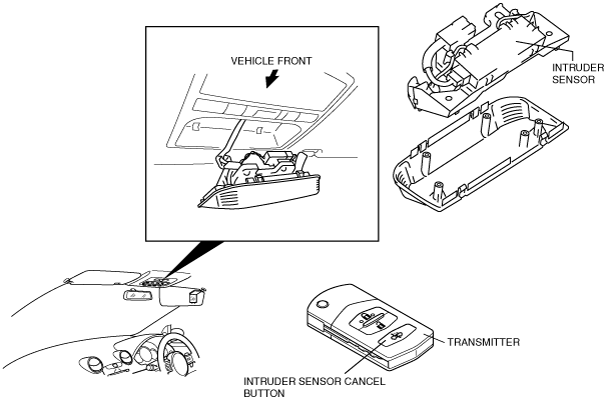

•  The intruder sensor is located in center part of the roof the forward part of the roof.
•  The intruder sensor detects movement in the vehicle by ultrasonic waves and sends the detection signal to the theft-deterrent control module.
•  An intruder sensor cut-off switch has been installed on the keyless entry system transmitter. If the intruder sensor cut-off switch is on while the theft-deterrent system is pre-armed, intruder sensor ultrasonic wave output is cut, and movement detection is stopped.
