THEFT-DETERRENT SIREN FUNCTION [KEYLESS ENTRY SYSTEM]
id0914b3115500
• The theft-deterrent siren is located on the rear, right side of the inside of the trunk side trim.
• Controlled by the following vehicle conditions:
-
― Standard alert control
― Open circuit alert control

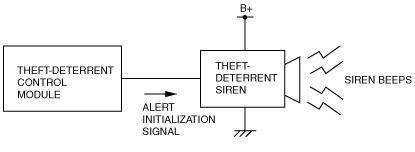

Standard Alert Control
• The siren beeps when receiving an alert initialization signal from the theft-deterrent control module. When a go-to-initial signal is received the siren is stopped.

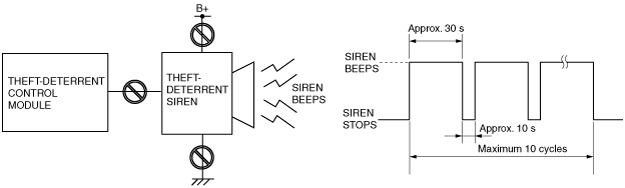

Open Circuit Alert Control
• A back-up power supply is integrated in the theft-deterrent siren.
• When an open circuit is detected in the related wiring harness, the theft-deterrent siren beeps using the back-up power supply.
• If any one of the following conditions are met, the siren is stopped:
-
― Receives go-to-initial signal from the theft-deterrent control module.
