DOOR SASH FILM INSTALLATION [3HB]

id0916004456z3

1.  Remove any grease or dirt from the affixing surface of the door.

2.  Cut away the unused portion along the dotted lines.

am2zzw00001922

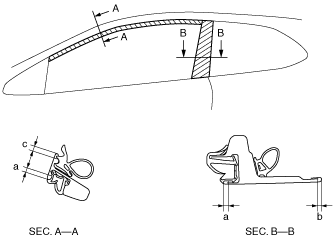

3.  Peel off the tape backing and attach the door sash film onto the door as shown in the figure.

am2zzw00003395

Standard clearance
a: 4.0 mm {0.16 in}
b: 3.0—5.0 mm {0.12—0.19 in}
c: 3.0 mm {0.12 in} or more

4.  Peel off the transparent protective film on the door sash film.

5.  Install the following parts:

(1)  Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION [3HB].)
(2)  Sail inner garnish (See SAIL INNER GARNISH REMOVAL/INSTALLATION.)
(3)  Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)
(4)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION [3HB].)
(5)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)
