ROOF MOLDING REMOVAL

id091600447800

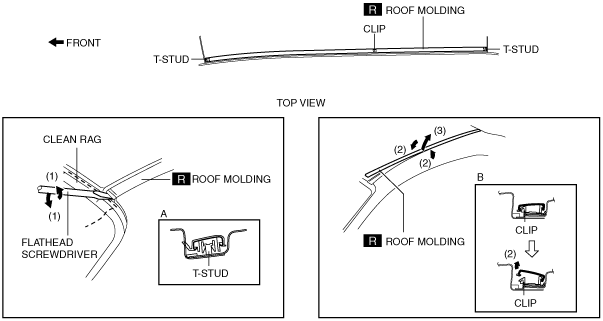

1.  Insert a flathead screwdriver in the position shown in the figure.

2.  Rotate the flathead screwdriver in the direction of the arrow (1) shown in the figure and remove the roof molding from the T-stud (figure A).

3.  Rotate the roof molding in the direction of the arrow (2) shown in the figure, pull up the roof molding in the direction of the arrow (3) while detaching it from the clip (figure B), and then remove the roof molding.
