MUDGUARD REMOVAL/INSTALLATION

id091600467600

1.  Remove screw A joined to the front bumper.

am2zzw00001900

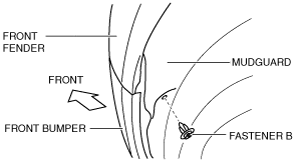

2.  Remove fastener B.

am2zzw00002519

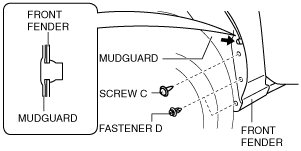

3.  After removing screw C and fastener D, insert a fastener remover in the position indicated by the arrow in the figure and detach the mudguard from the front fender.

am2zzw00001902

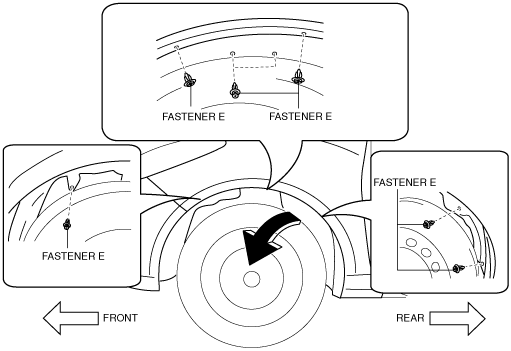

4.  Remove fasteners E, then remove the mudguard in the direction of the arrow shown in the figure.

adejjw00004195

5.  Install in the reverse order of removal.
