DASHBOARD DISASSEMBLY/ASSEMBLY
id091700453600
1. Disassemble in the order indicated in the table.

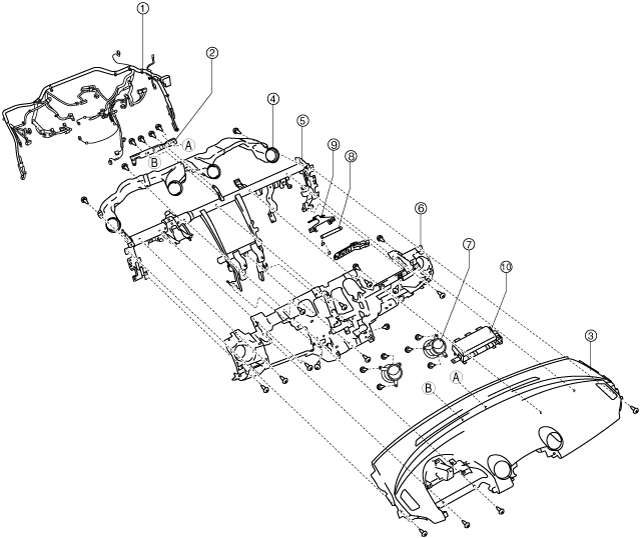

L.H.D.
am2zzw00001503
|

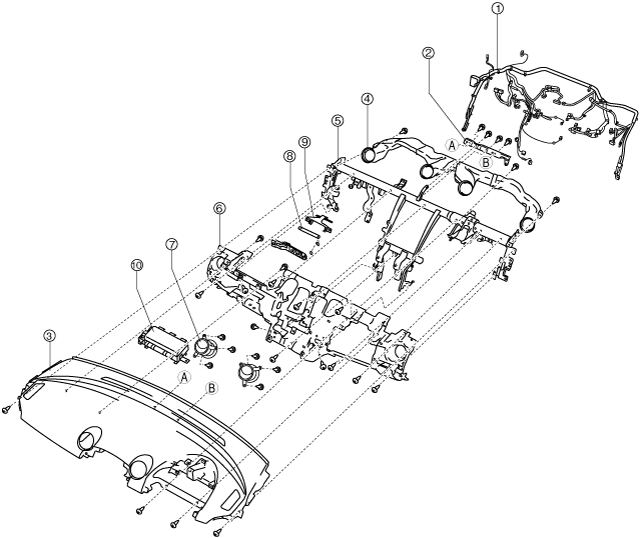

R.H.D.
am2zzw00001504
|
|
1
|
Dashboard wiring harness
|
|
2
|
Dashboard bracket
|
|
3
|
Upper garnish
|
|
4
|
Duct
|
|
5
|
Dashboard member
|
|
6
|
Dashboard
|
|
7
|
Center ventilator grille
|
|
8
|
Glove compartment damper
|
|
9
|
Glove compartment striker (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION)
|
|
10
|
Passenger-side airbag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION)
|
2. Assemble in the reverse order of disassembly.
