SIDE PANEL REMOVAL/INSTALLATION

id091700454000

1.  Partially peel back the seaming welt.

2.  Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION)

3.  Pull the side panel in the direction of the arrow shown in the figure and remove it while detaching clips A and B.

L.H.D.

am2zzw00001808

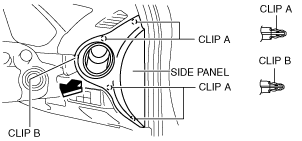

R.H.D.

am2zzw00001809

4.  Install in the reverse order of removal.
