TRUNK END TRIM REMOVAL/INSTALLATION

id091700462400

1.  Open the liftgate.

2.  Remove the trunk mat.

3.  Partially peel back the seaming welt.

4.  Remove the fasteners.

am2zzw00001849

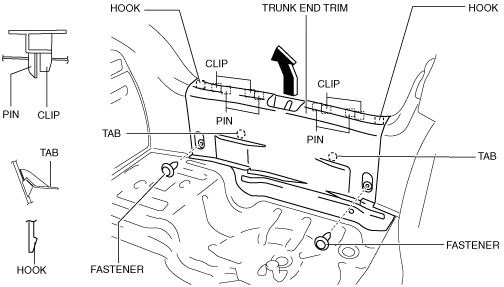

5.  Pull the trunk end trim in the direction of the arrow shown in the figure and remove it while detaching the hooks, tabs, clips, and pins.

6.  Install in the reverse order of removal.
