LIFTGATE UPPER TRIM REMOVAL/INSTALLATION

id091700462900

Caution

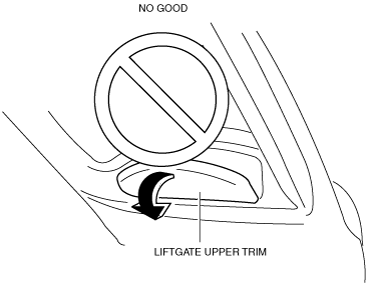

•  Do not remove the liftgate upper trim by rotating as shown in the figure as it could damage clip A and F.

am2zzw00003576

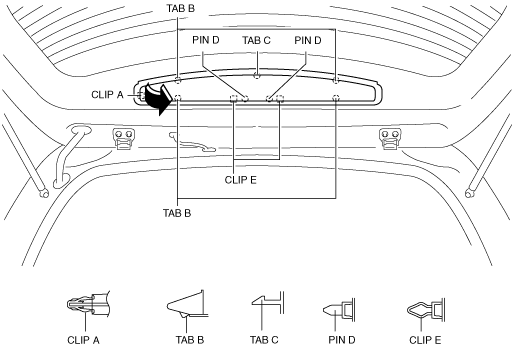

1.  Pull the end of liftgate upper trim outward and detach clip A, tabs B, C, pins D, and clips E.

am2zzw00003577

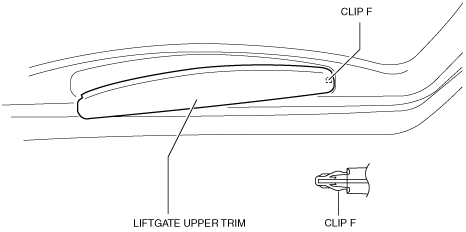

2.  Remove the clip F then remove the liftgate upper trim.

am2zzw00003578

3.  Install in the reverse order of removal.
