RUNNING LIGHT SYSTEM OPERATION
id091800103000
2-Beam Type
|
IG |
H/L SW |
DIMMER SW |
HEADLIGHT |
EXTERIOR LIGHT |
INTERIOR LIHT |
RUNNING LIGHT MODE |
||
|---|---|---|---|---|---|---|---|---|
|
TNS |
HEAD |
|||||||
|
LOW |
HIGH |
|||||||
|
OFF
|
OFF
|
OFF
|
LOW
|
OFF
|
OFF
|
OFF
|
OFF
|
OFF
|
|
PASS
|
OFF
|
ON
|
OFF
|
OFF
|
||||
|
HIGH
|
OFF
|
OFF
|
OFF
|
OFF
|
||||
|
ON
|
OFF
|
LOW
|
OFF
|
OFF
|
ON
|
ON
|
||
|
PASS
|
OFF
|
ON
|
ON
|
ON
|
||||
|
HIGH
|
OFF
|
OFF
|
ON
|
ON
|
||||
|
ON
|
LOW
|
ON
|
OFF
|
ON
|
ON
|
|||
|
PASS
|
OFF
|
ON
|
ON
|
ON
|
||||
|
HIGH
|
OFF
|
ON
|
ON
|
ON
|
||||
|
ON
|
OFF
|
OFF
|
LOW
|
ON
|
OFF
|
ON
|
OFF
|
ON
|
|
PASS
|
OFF
|
ON
|
ON
|
OFF
|
||||
|
HIGH
|
ON
|
OFF
|
ON
|
OFF
|
||||
|
ON
|
OFF
|
LOW
|
OFF
|
OFF
|
ON
|
ON
|
OFF
|
|
|
PASS
|
OFF
|
ON
|
ON
|
ON
|
||||
|
HIGH
|
OFF
|
OFF
|
ON
|
ON
|
||||
|
ON
|
LOW
|
ON
|
OFF
|
ON
|
ON
|
|||
|
PASS
|
OFF
|
ON
|
ON
|
ON
|
||||
|
HIGH
|
OFF
|
ON
|
ON
|
ON
|
||||
4-Beam Type
|
IG |
H/L SW |
DIMMER SW |
HEADLIGHT |
EXTERIOR LIGHT |
INTERIOR LIHT |
RUNNING LIGHT MODE |
||
|---|---|---|---|---|---|---|---|---|
|
TNS |
HEAD |
|||||||
|
LOW |
HIGH |
|||||||
|
OFF
|
OFF
|
OFF
|
LOW
|
OFF
|
OFF
|
OFF
|
OFF
|
OFF
|
|
PASS
|
ON
|
ON
|
OFF
|
OFF
|
||||
|
HIGH
|
OFF
|
OFF
|
OFF
|
OFF
|
||||
|
ON
|
OFF
|
LOW
|
OFF
|
OFF
|
ON
|
ON
|
||
|
PASS
|
ON
|
ON
|
ON
|
ON
|
||||
|
HIGH
|
OFF
|
OFF
|
ON
|
ON
|
||||
|
ON
|
LOW
|
ON
|
OFF
|
ON
|
ON
|
|||
|
PASS
|
ON
|
ON
|
ON
|
ON
|
||||
|
HIGH
|
ON
|
ON
|
ON
|
ON
|
||||
|
ON
|
OFF
|
OFF
|
LOW
|
ON
|
OFF
|
ON
|
OFF
|
ON
|
|
PASS
|
ON
|
ON
|
ON
|
OFF
|
||||
|
HIGH
|
ON
|
OFF
|
ON
|
OFF
|
||||
|
ON
|
OFF
|
LOW
|
OFF
|
OFF
|
ON
|
ON
|
OFF
|
|
|
PASS
|
ON
|
ON
|
ON
|
ON
|
||||
|
HIGH
|
OFF
|
OFF
|
ON
|
ON
|
||||
|
ON
|
LOW
|
ON
|
OFF
|
ON
|
ON
|
|||
|
PASS
|
ON
|
ON
|
ON
|
ON
|
||||
|
HIGH
|
ON
|
ON
|
ON
|
ON
|
||||
System Operation
When the ignition switch turns to on:
1. Two transistors are turned on with current (1) flowing in transistor 1, and current (2) in transistor 2.
2. When transistors 1 and 2 are on, the headlight relay and TNS relay turn on, and the headlights (low-beam), parking lights/taillights/license plate light, illumination light illuminate.

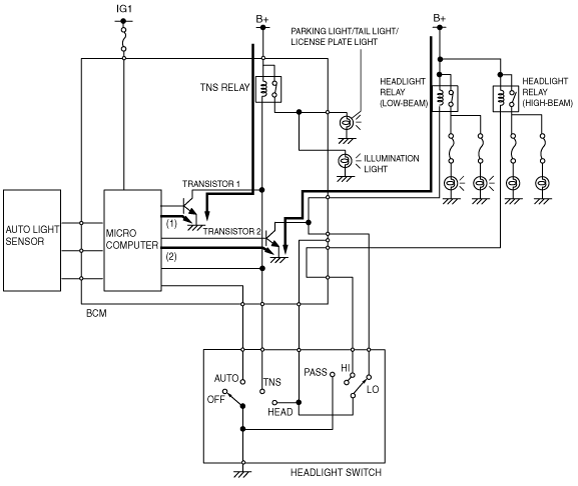

2-Beam Type
am2zzn00001137
|

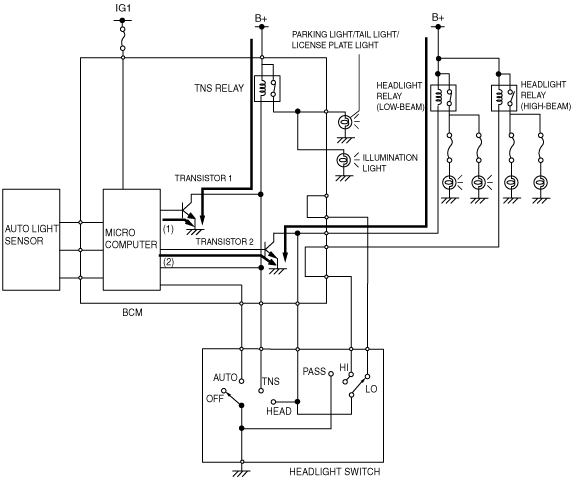

4-Beam Type
am2zzn00001121
|
