LIGHT SWITCH INSPECTION

id091800469800

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the continuity between the light switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the light switch.

Vehicles Without Auto Light System

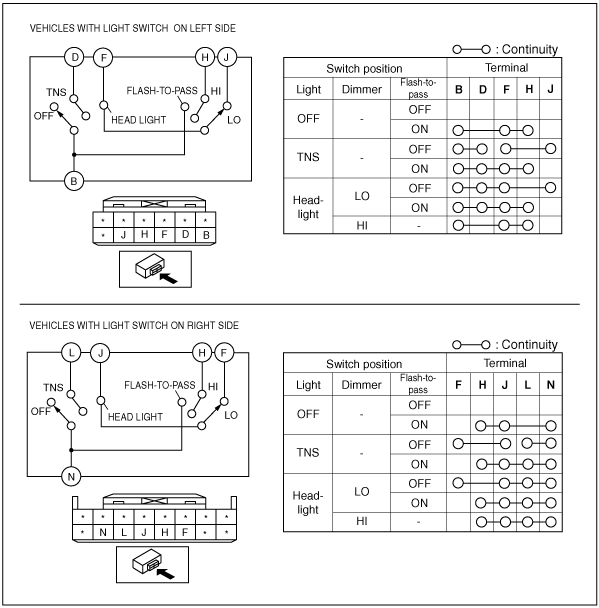

Headlight switch

am2zzw00003802

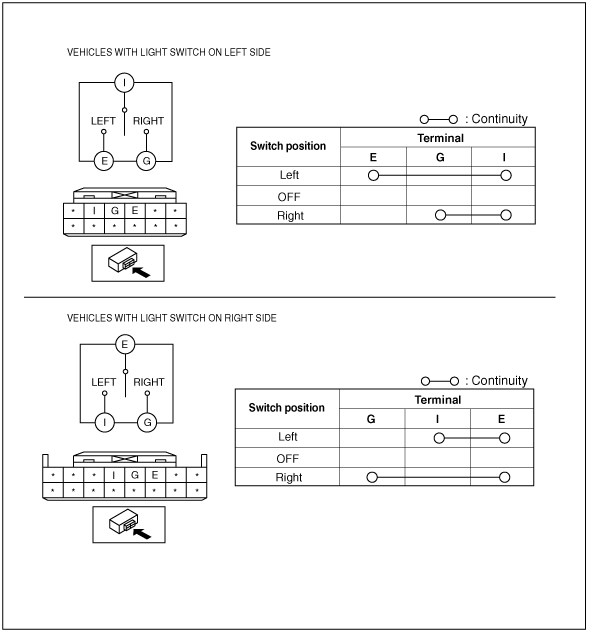

Turn switch

am2zzw00002408

Vehicles With Auto Light System

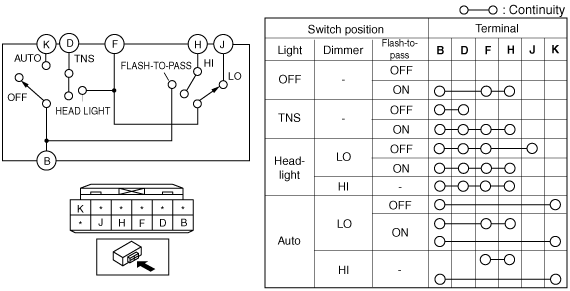

Headlight switch

am2zzw00003803

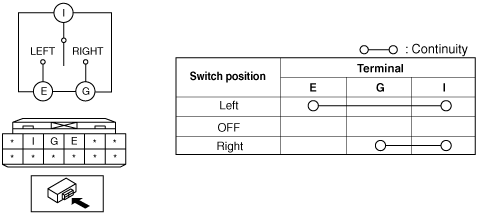

Turn switch

am2zzw00003804
