FRONT COMBINATION LIGHT CONSTRUCTION


id091800524500

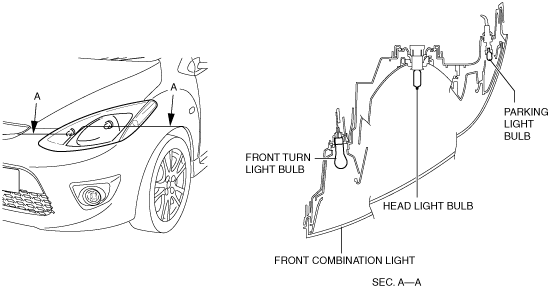

2-Beam Type

•  Front combination lights in which the headlight, front turn light, and parking light are integrated have been adopted to improve design ability.
am2zzn00000826

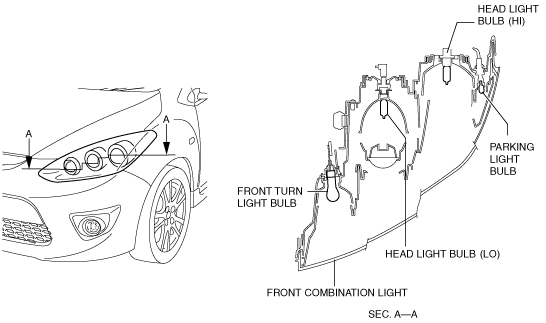

4-Beam Type

•  Front combination lights in which the headlight, front turn light, and parking light are integrated have been adopted to improve design ability.
•  Projector-type halogen headlights have been adopted which emit light over a wide-area from the headlights.
am2zzn00001094

Projector-type headlight

•  Light emitted from the first focal point is projected off the reflector, gathered at the second focal point, and output through the convex lens.
am6xun00000249
